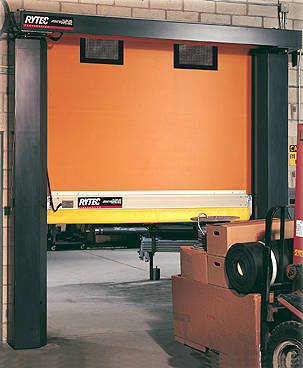

High Speed Doors
HIGH-SPEED ROLLING DOORS
Fast-Seal
The Door That
Revolutionized the Industry.
When it was
introduced with the first-ever Break-Away™ bottom bar, the Fast-Seal
high-speed roll door changed the industry forever. Suddenly, a roll door was
able to take a hit without suffering damage.
It is this concept
around which the industry has grown, but no other manufacturer has matched the
dependability or durability of the Fast-Seal with the original Break-Away
bottom bar. Which is why it remains the most popular door on the market
today.
Fast –
Opens at up to 50 inches per second.
Safety –
Dual electric photo eyes in side column and reversing edge in bottom bar.
Optional, replaceable window panels for visibility.
Takes a Hit
– Break-Away bottom bar repairs quickly without tools.
Easy
Installation – Modular construction and pre-wiring allows for quick
installation.
Full Tension
– Patented System II design provides proper counterbalance and tension
at all times.
Low Maintenance
– System II design comes with a lifetime warranty on all
counterweights and tension springs.
SPECIFICATIONS: (Subject to change)
Model:
Rytec® Fast-Seal®
Standard Size:
Up to 24 feet wide and 24 feet high.
Door Panel:
Three panel materials available: 3-ply multi-filament Rilon material or
2-ply multi-filament Rilon material (only available on exterior doors up to 14w
x 16h) with optional, replaceable window panels; 4 mm clear PVC material (only
available on interior doors up to 12w x 14h).
Side Frames:
Fully bolt-together, reinforced side frames with front and rear wind bar guides
and full-height vinyl weather strip seals against fabric material. Dual
thru-beam photo eyes factory-installed in standard models.
Bottom Bar:
Extruded aluminum bottom bar capable of releasing in either direction without
damage to bar, reversing edge or side covers. Electric or pneumatic
auto-reversing edge standard. Standard dual cut-off switches automatically shut
off motor when bottom bar is impacted. No exposed junction box on bottom bar.
Bottom bar pre-assembled on doors at factory.
Counterbalance
& Tensioning: Patented System II design separates counterbalance and
fabric tension. Counterbalance system consists of guided counterweights
customsized to provide proper balancing of each door. Independent tension
system maintains constant panel tension.
Counterbalance
System Patented System II independent counterbalance and tension systems
eliminate stress and strain on the motor and gear box by separating door
counter-balance and fabric tension.
Drive System:
Three-phase, variable-speed AC Drive provides soft acceleration and
deceleration. Independent opening and closing speeds provide flexibility to
meet any application. Motor and electrical components are factory wired to
junction boxes in the head assembly.
Travel Speed:
Opens at up to 50 inches per second.
Electrical
Controls: System 3 controller is housed in a NEMA 4 rated enclosure with
factory-set parameters. Self-diagnostic features and a two-line, 32-character
LCD display provide quick and straight forward installation and control
adjustments. Programmable inputs and outputs accommodate special control
applications without additional electrical components.
System 3
Controller Makes programming and troubleshooting easier, more flexible and
more precise than ever.
Resetting
Break-Away™ Bar Patented Break-Away bottom bar can be reset after
taking a hit without tools in less than two minutes.
Warranty:
One-year limited warranty on materials and workmanship. Lifetime warranty on
counterweights and tension springs. Five-year limited warranty on 3-ply Rilon
panel material.
Contact us today to find out which Accurate Overhead
Door is right for you!
See - The Industry’s Most Popular
Door.
