HIGH SPEED
DOORS
High Speed Doors

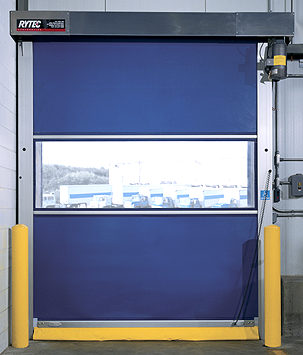

HIGH-SPEED ROLLING DOORS
PredaDoor®
The Industry’s Most Popular Door.
A Product of the
Year award-winner, the PredaDoor roll door is the most popular high-speed door
in the industry. That’s because its simple, direct-drive operation and
supreme reliability have enabled it to be applied successfully in a vast array
of applications. And today, the addition of the System 3™ controller, with
its integrated variable speed AC Drive system for soft acceleration and
braking, makes it more dependable and durable than ever.
Plus, the PredaDoor
offers the added safety and versatility of full-width replaceable window panels
or optional screen panels. For general applications, it’s the best value
in the business.
Fast –
Opens at up to 50 inches per second for improved traffic flow.
Safety -
Full-width, replaceable PVC window panel (or optional screen panel) for great
visibility. Standard features include reversing edge in bottom bar and two
electric photo eyes.
Takes a Hit
– Quick-Set™, Break-Away™ tabs allow bottom bar to be reset
without tools in just seconds, virtually eliminating door downtime.
Low Profile
- Only 6-1/4 inches of side clearance and 3-3/4 inches of side column
projection required. Fits virtually anywhere.
Wind Resistance
- Integral panel connecting ribs provide resistance to wind and negative
pressure. Also allows for quick, inexpensive replacement of all panel sections.
Optional rigid, 2-ply or 3-ply Rilon™ available for high wind exterior
applications.
Specifications: Subject to change
Model:
Rytec® PredaDoor®
Standard
Size: Up to 15 feet wide and 15 feet high.
Door Panel:
Standard 32 ounce replaceable vinyl sections with up to four wind ribs and one
full-width replacable 2-ply or 3-ply Rilon™, USDA compliant material, and
screen material.
Side Frames:
Fully bolt together, anodized aluminum construction with full-height
weatherseal to seal against panel material. Dual electric photo eyes are
standard.
Bottom Bar:
Quick-Set™, Break-Away™ extruded aluminum bottom bar releases in
either direction without damage to the door. Standard dual cut-off switches
shut off motor when bottom bar is impacted. Pneumatic dual-chamber reversing
edge is standard. No exposed junction box on bottom bar. Vinyl loop hugs floor
contour for tight seal. Bottom bar preassembled on doors at factory.
Drive System:
Three-phase, variable speed AC Drive provides soft acceleration and
deceleration. Independent opening and closing speeds provide flexibility to
accommodate any application.
Travel
Speed: Opens at up to 50 inches per second.
Electrical
Controls: System 3™ controller housed in a NEMA 4 rated enclosure with
factory set parameters. Self-diagnostic features and a two-line, 32-character
LCD display in English or Spanish provide quick and straight-forward
installation and control adjustments. Programmable inputs and outputs
accommodate special control applications without the need for additional
electrical components.
Warranty:
One-year limited warranty on materials and workmanship. Three year limited
warranty on 2-ply Rilon™ panel material.
Quik-Set™,
Break-Away™ Tabs Tabs allow the door to be reset in seconds without
tools after the door has been impacted. Cut-off switch between tabs deactivates
motor when door is hit
Panel Support
Assembly Integral connecting ribs allow easy replacement of individual
panels, including optional screens, while providing stiff resistance against
wind and negative pressure.
Contact us today to find out which Accurate Overhead
Door is right for you!
